CAN AI ACTUALLY DESIGN A REAL CAR PART? I TESTED IT WITH CLAUDE FABLE 5
So you keep seeing "AI CAD" everywhere, but you're not sure if it's actually useful for building car parts, or if it's just another overhyped tool that falls apart the second you try it on something real?
Here's the exact test I ran:
Mocked up a simple 4-cylinder exhaust manifold design in Shapr3D
Uploaded photos of that mockup to Claude, using the newly unblocked Fable 5 model
Asked for a STEP file — the format that lets you keep editing the design afterward
Watched it write and run a Python script to actually build the geometry
Graded the output against the originally human created 4-cylinder exhaust manifold
WHY IS EVERY CAD DESIGNER TALKING ABOUT THIS RIGHT NOW?
Anthropic just shipped a wave of MCP connectors — Autodesk Fusion, Blender, Adobe, and others — that let Claude reach directly into design software and make changes, not just suggest them.
Autodesk's own framing is blunt: Claude can turn a plain-language prompt into an actual modeling action inside Fusion, not just a wall of text you have to recreate by hand yourself.
Blender got a similar deal.
Claude can read a Blender scene, debug it, and write custom Python scripts that show up as real tools inside Blender's interface.
Anthropic backed that one with a direct donation to the Blender project, separate from Blender's existing Development Fund.
The CAD community's reaction hasn't been unanimous celebration.
❌ A chunk of professional designers are treating this the way illustrators treated image generators — as a threat to their jobs, not a tool for it.
WHAT HAPPENED WHEN I FED CLAUDE A REAL MANIFOLD MOCKUP?

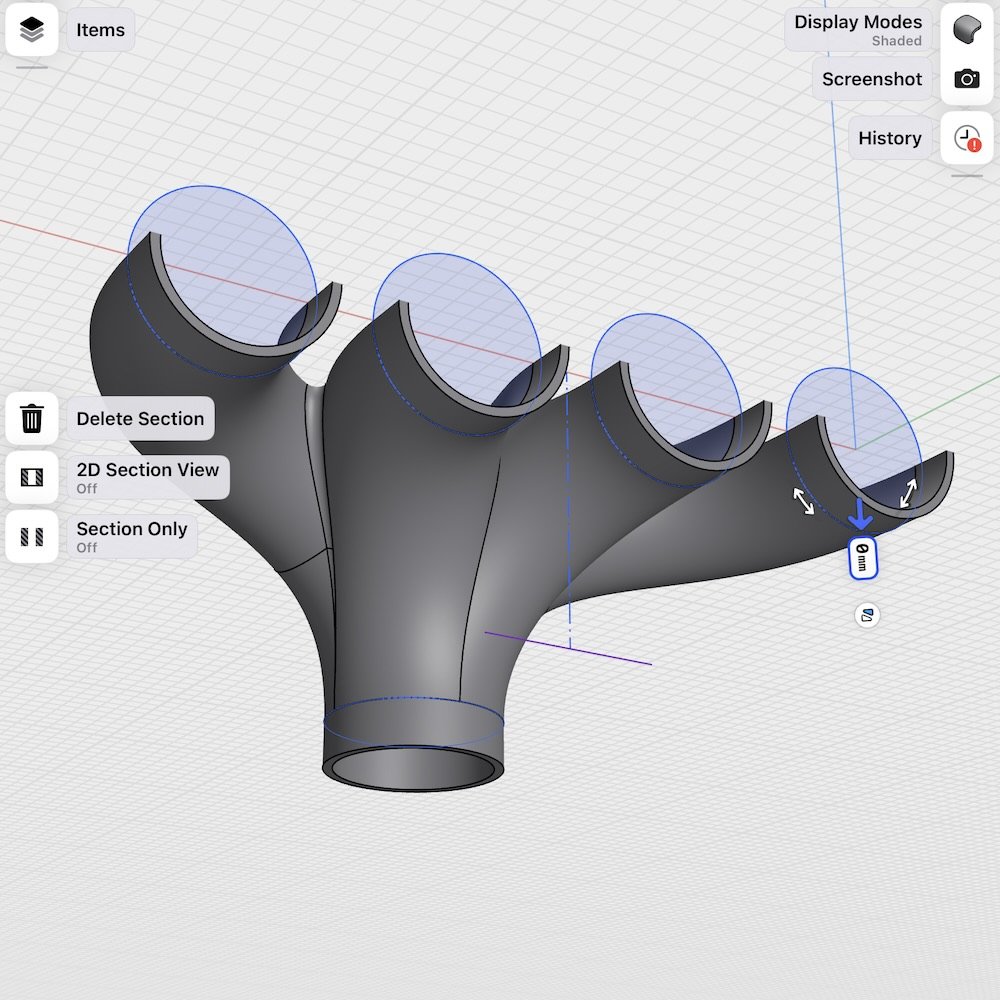

I built a simple 4-cylinder exhaust manifold in Shapr3D first.
90-degree bends, no flanges, nothing fancy.
Shapr3D doesn't talk to Claude directly, so I went straight to the Claude web app, picked Fable 5 in the prompt, described the manifold, and uploaded photos of the mockup.
I asked for a STEP file specifically — that's the format you need if you want to keep editing the part afterward instead of being stuck with an STL you can’t modify.

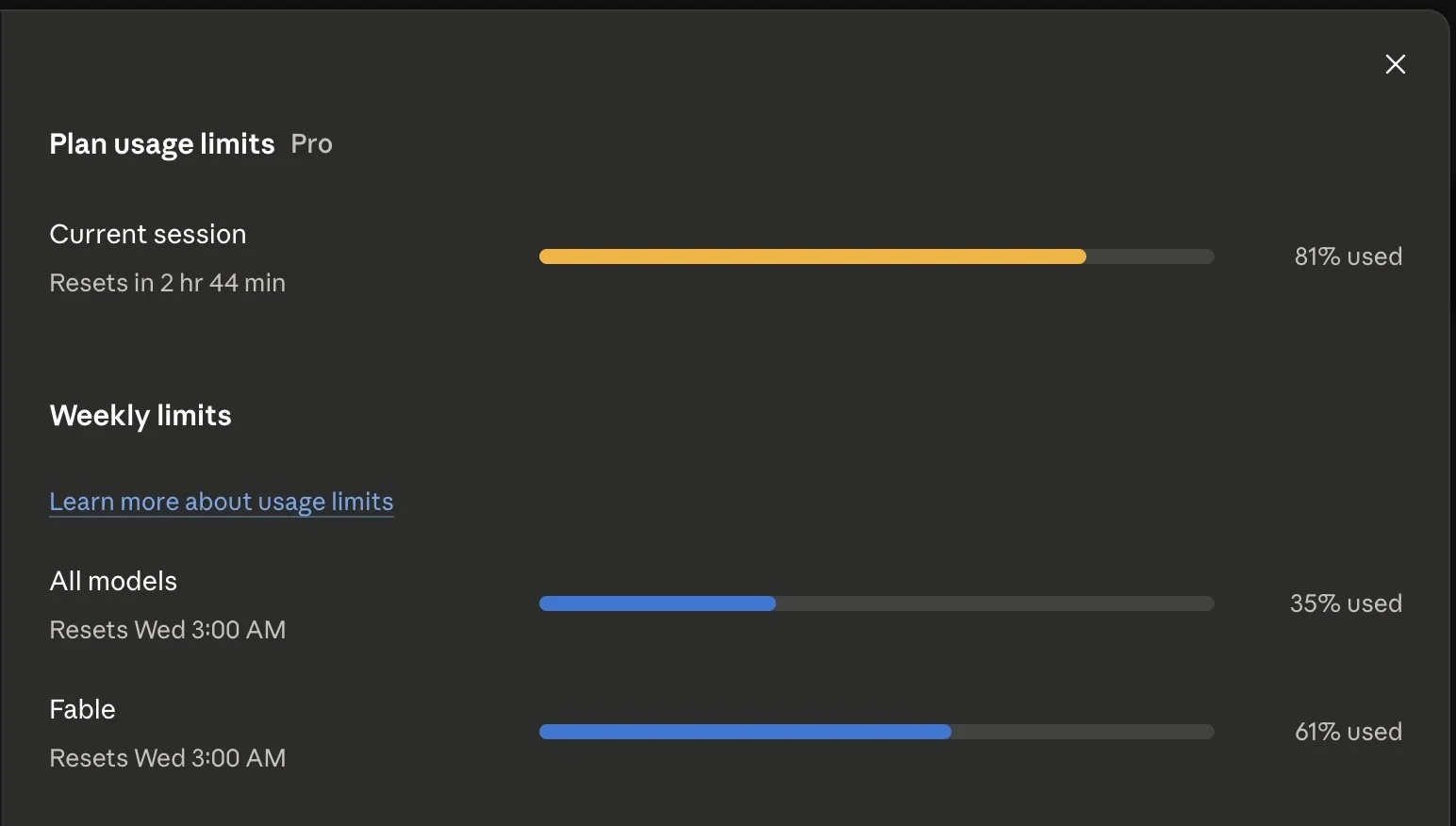

Five minutes into my promp, I hit my Claude Pro session limit. Before I started I was around 85%
Fair. I'd already been running it hard on a few other prompts that day.
I waited out the session limit reset and refreshed the prompt.
This time it worked through the whole build: loaded Python, spun up a script, and chugged along until it had something.

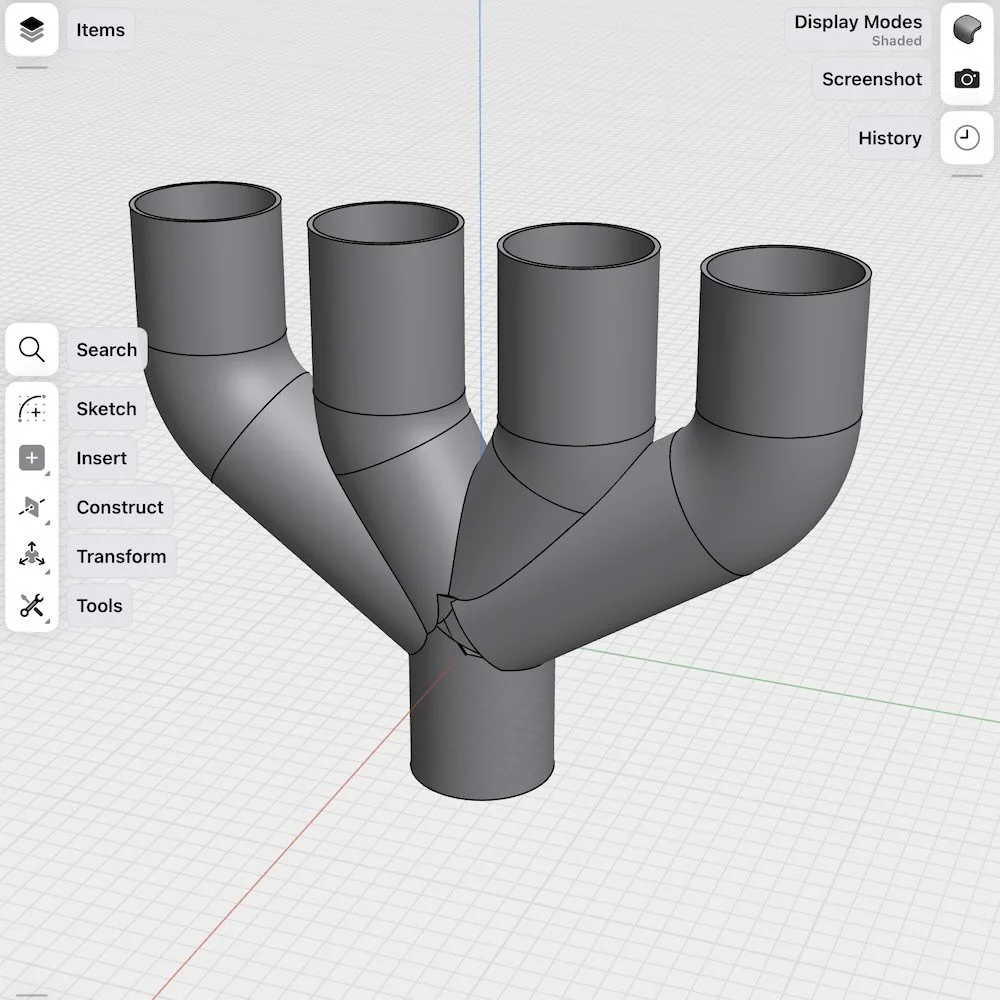

The diameter came out dead on. It built an actual 4-into-1 header.
❌ The angle was non-existant and the collector geometry needed some work. For a first pass built off a handful of photos and some prompting, it wasn’t as bad as I thought.

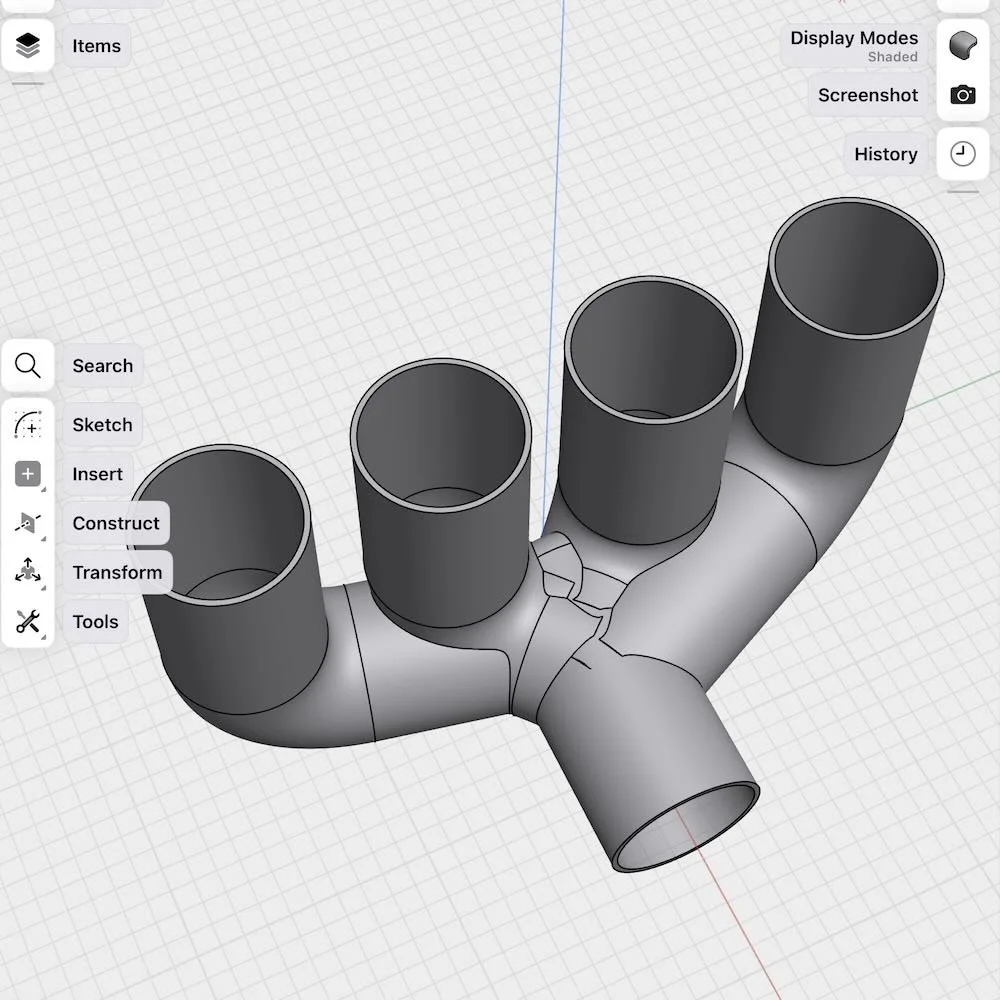

A few more rounds of prompting and it still wasn't perfect, but I had something much more usable.

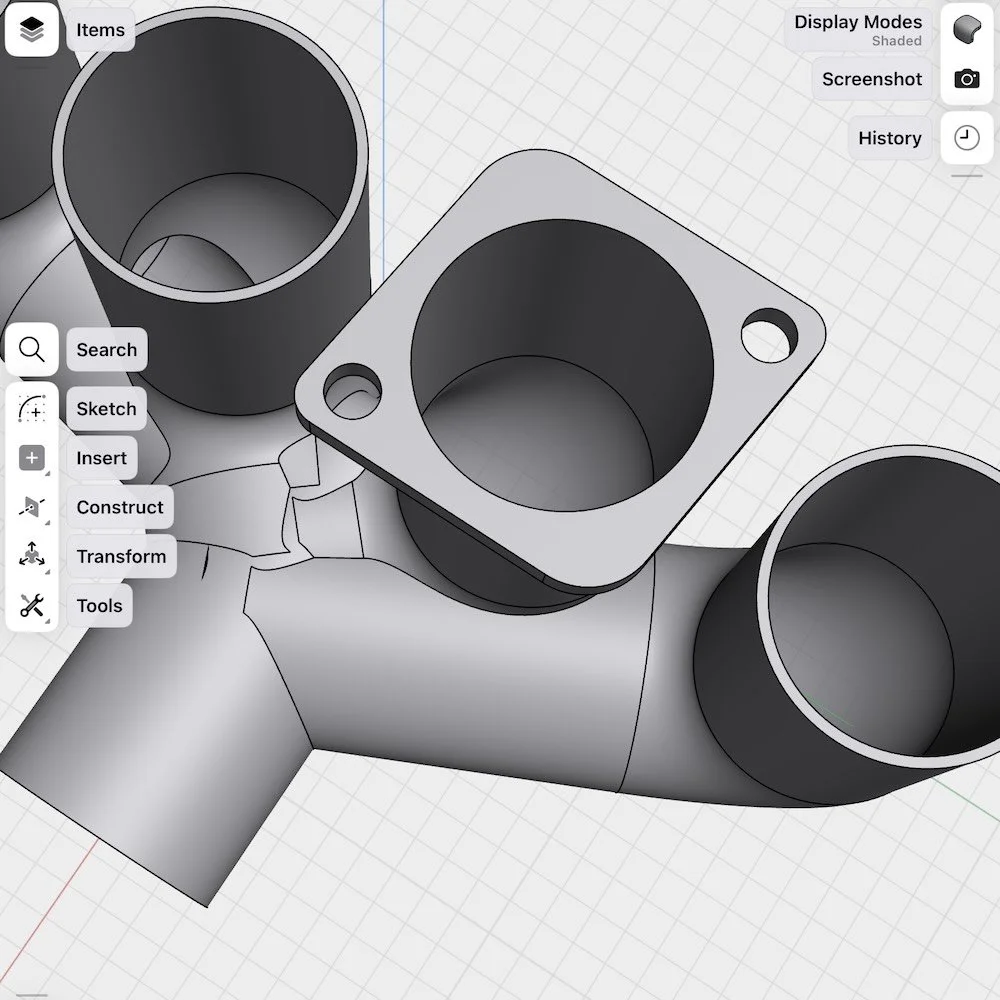

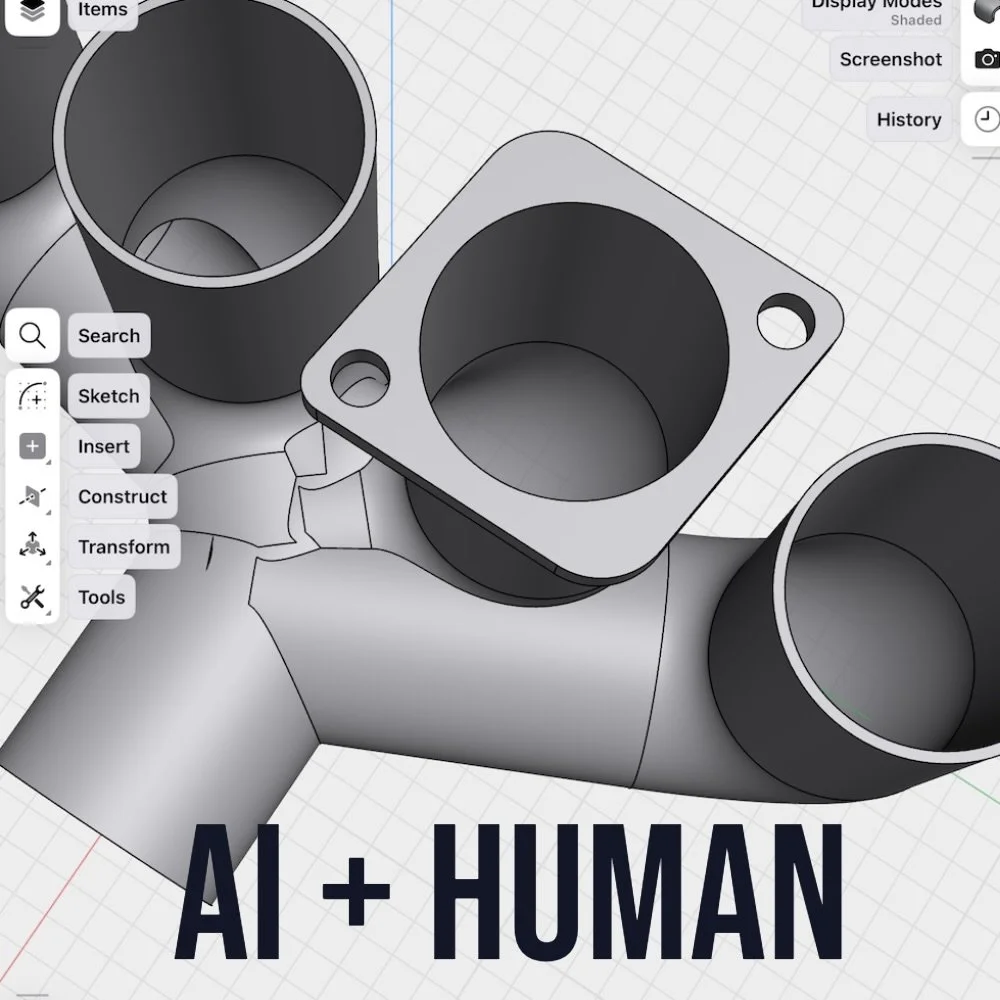

From the updated STEP file created I was able to create a flange in Shapr3D and integrated it directly onto the CAD model Fable 5 created.
Hours, depending on complexity
Dimensional accuracy: Dead on for simple diameters/lengths
Weak spot: Bend angles, collector/junction geometry
You draw every surface
Not yet for: Final, ship-ready parts without manual review
HOW DOES TEXT-TO-CAD ACTUALLY WORK FOR CAR PARTS?
Under the hood, this isn't Claude "drawing" anything. It's writing a script — in my case Python — then executes to generate geometry. That's why STEP export matters: it's an editable model, not a frozen file like an STL.
The Autodesk and Blender connectors take this a step further by giving Claude a live link into the software itself.
That's genuinely useful if you're on Fusion or Blender. If you're on Shapr3D, SolidWorks, or most other CAD platforms, none of that exists yet — the photo-and-prompt workaround is still the only path in.
💡 PRO TIP: Give Claude a known reference dimension in at least one photo (a ruler, a bolt head, digital caliper reading). Without it, diameters and lengths are guesses dressed up as precision.
WHERE DOES AI CAD ACTUALLY BREAK DOWN?
Independent reviews of the Fusion and Blender connectors flag similar limitations I ran into: Claude doesn't "see" geometry, it issues commands and reads back a status.
It can't inspect the result, catch an interference error, or verify tolerance.
❌ Don't trust bend angles or junction/collector geometry without checking them yourself. That's exactly where my test fell short.
❌ Don't skip the print-and-check step. An AI-edited model that looks clean on screen can still be off or non-manifold (something that doesn’t work in real life) instead of being watertight.
SHOULD AI BE FULLY INTEGRATED INTO CAR PART DESIGN?
But designers are pushing back hard.
Here's where I land": I get the concern, but for how I build, and being a one man shop it could be golden.
Who wouldn’t want hours back I used to spend on the boring part of car part modeling — the base geometry. I could spend more time coming up with new ideas for existing parts.
Heck, I could have more time to come up with entirely new parts.
That trade-off is different if CAD is your entire job.
It's a different conversation for a professional designer than it is for a guy building parts as a solo entrepreneur.
Now I'm already working on the next version: feeding it a 3D scan directly and seeing if it can convert that straight into an editable STEP file, no photos and back-and-forth required.
That's the harder problem, and it's the one that actually matters for reverse-engineering real OEM car parts.

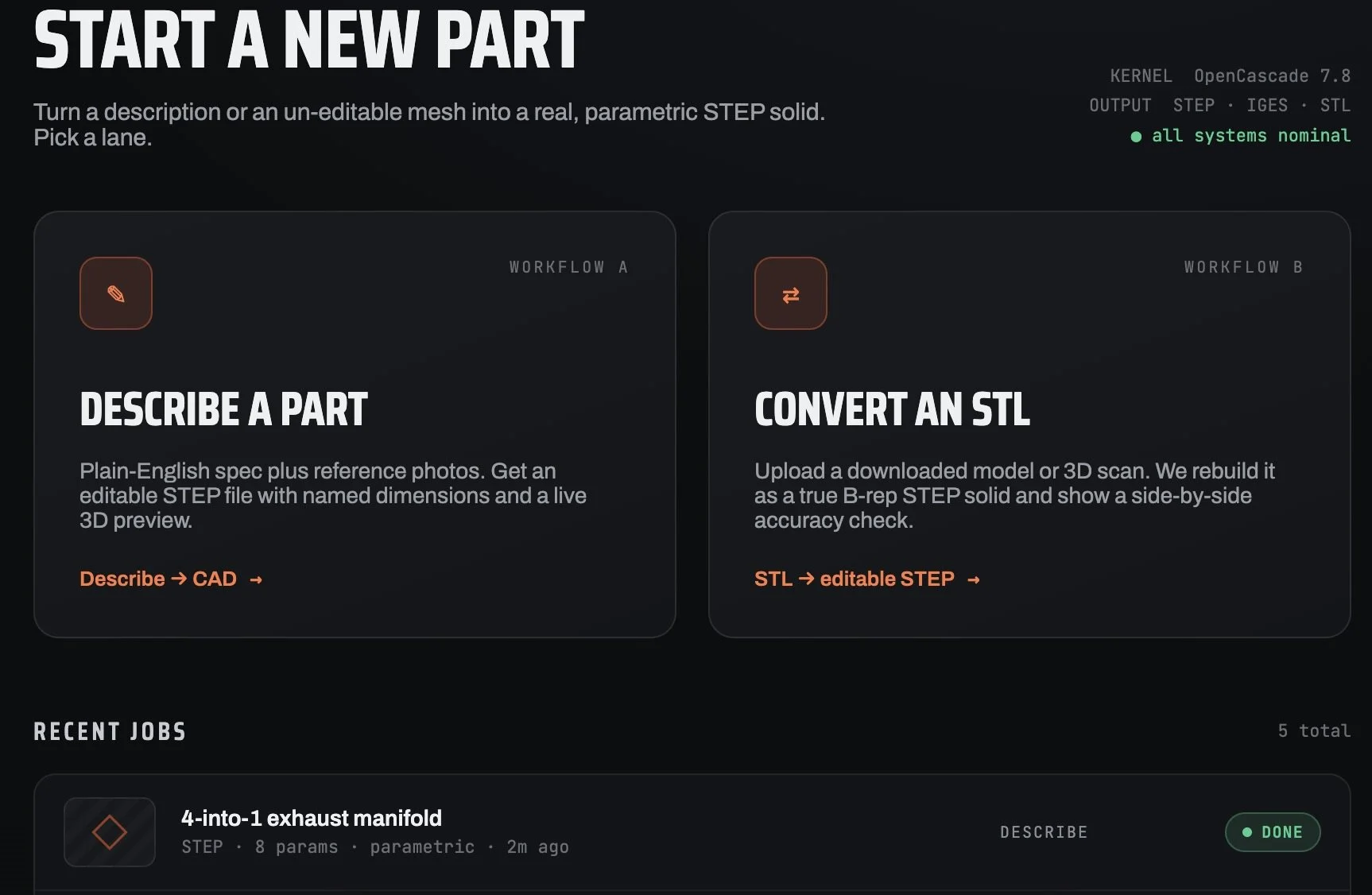

Here’s the interface prompted with Claude Fable 5
But if you want to learn how to design your own parts from scratch — and maybe send to AI — the full video playlist covering it is right here: 3D Printed Car Parts Playlist
If you prefer the full web version of the designing car parts workflow, we broke it down step-by-step in 3 Ways to Design 3D Printed Car Parts.
